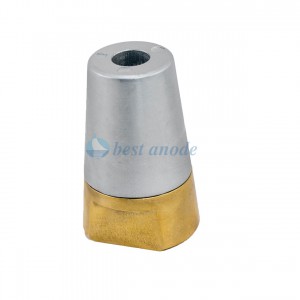

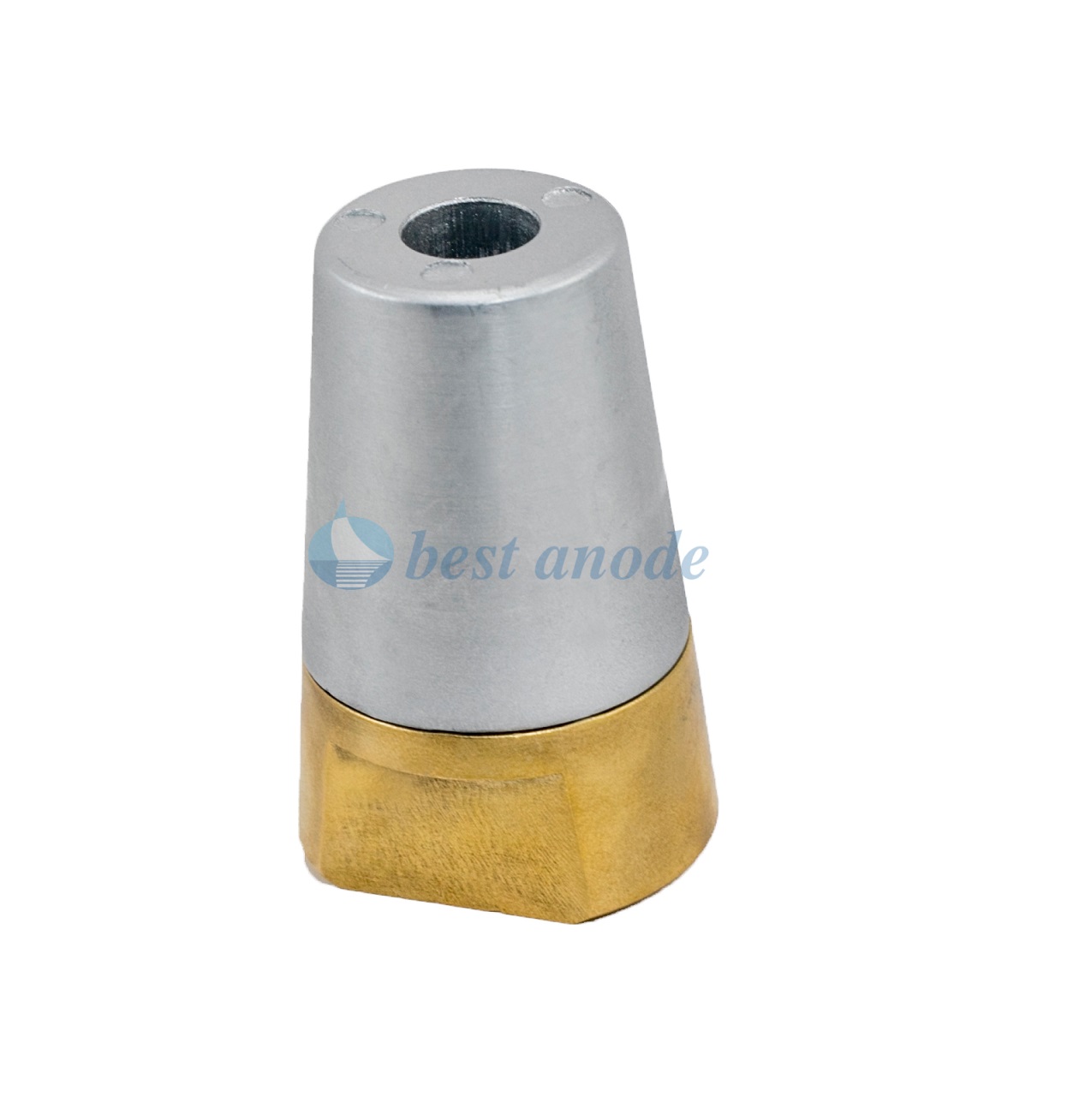

KOMPLE 6 KÖŞE PERVANE TUTYALARI

Özel ölçülere göre üretim yapılır.

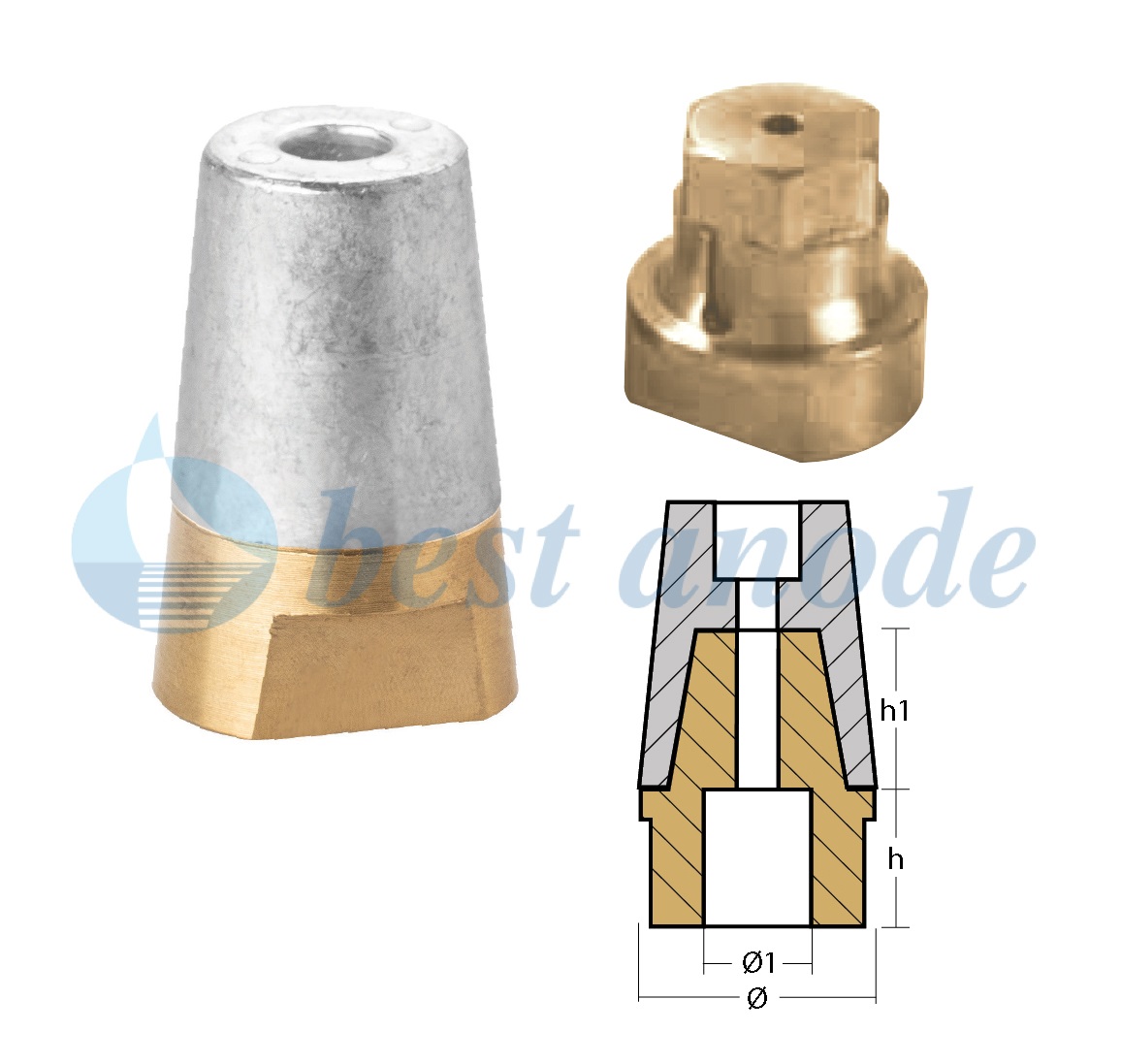

Material	Code	Ø Shaft	Ø	Ø 1	h	h1
Zn+Brass	6CP 025	25mm- 1”	37mm- 1 7/16”	16mm*1,5	18mm- 11/16”	18mm- 11/16”
Zn+Brass	6CP 030	30mm- 1 3/16”	45mm- 1 3/4”	20mm*1,5	22mm- 7/8”	21mm- 13/16”
Zn+Brass	6CP 035	35mm- 1 3/8”	50mm- 2”	24mm*2	24mm- 15/16”	24mm- 15/16”
Zn+Brass	6CP 040	40mm- 1 9/16”	55mm- 2 3/16”	24mm*2	27mm- 1 1/16”	26mm-1,02”
Zn+Brass	6CP 045	45mm- 1 3/4”	65mm- 2 9/16”	33mm*2	29mm- 1 1/8”	29mm- 1 1/8”
Zn+Brass	6CP 050	50mm- 2”	75mm- 2 15/16”	36mm*3	35mm- 1 3/8”	40mm- 1 9/16”
Zn+Brass	6CP 055	55mm- 2 3/16”	80mm- 3 3/16”	40mm*3	35mm- 1 3/8”	40mm- 1 9/16”
Zn+Brass	6CP 060	60mm- 2 3/8”	90mm- 3 9/16”	45mm*3	41mm- 1 5/8”	44mm- 1 3/4”
