SIDE POWER TUTYALARI
Özel ölçülere göre üretim yapılır.

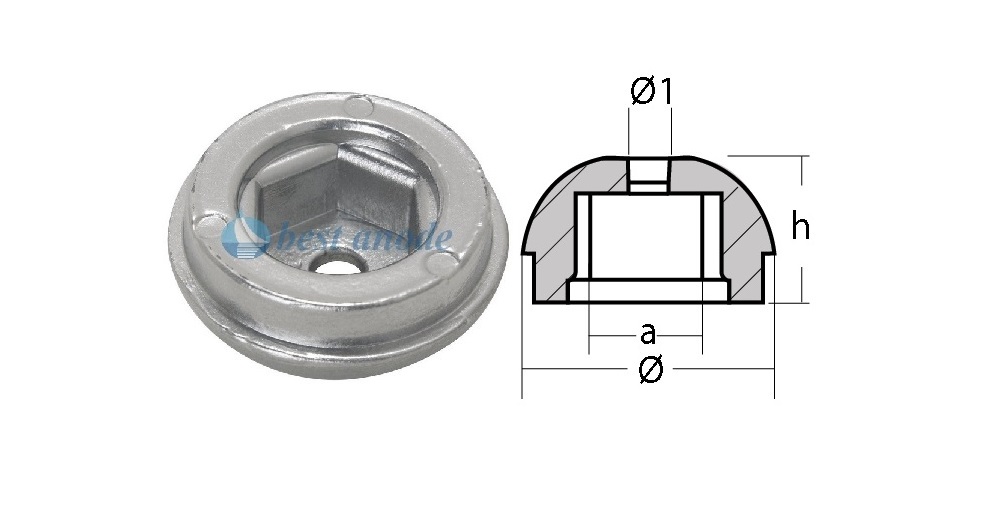

SP 075 Series
| Mat. | Code... | Desciription | Ø | Ø 1 | h | a | kg | lb |
|---|---|---|---|---|---|---|---|---|
| Zn | SP 075 | For Side Power 55/60/65/75/80/95/100 | 45mm- 1 3/4” | 11mm- 7/16” | 20mm- 13/16” | 20mm- 13/16” | 0,15 | 0,33 |
| Al | SP 075A | For Side Power 55/60/65/75/80/95/100 | 45mm- 1 3/4” | 11mm- 7/16” | 20mm- 13/16” | 20mm- 13/16” | 0,057 | 0,13 |

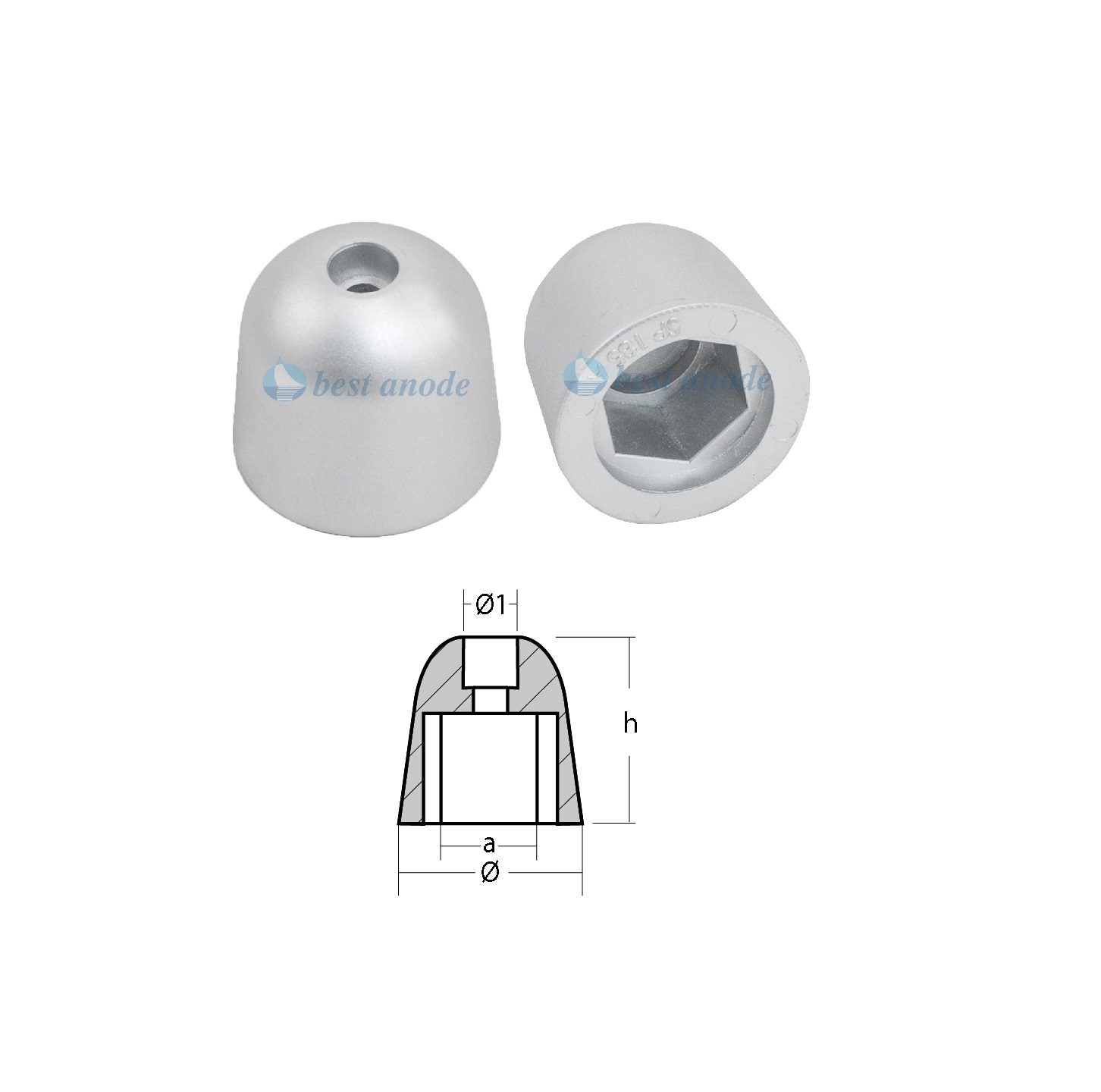

SP 125 Series
| Mat. | Code... | Desciription | Ø | Ø 1 | h | a | kg | lb |
|---|---|---|---|---|---|---|---|---|
| Zn | SP 125 | For Side Power 250/300 | 41mm- 1 5/8” | 11mm- 7/16” | 34mm- 1 3/8” | 24mm- 15/16” | 0,16 | 0,35 |
| Al | SP 125A | For Side Power 250/300 | 41mm- 1 5/8” | 11mm- 7/16” | 34mm- 1 3/8” | 24mm- 15/16” | 0,063 | 0,14 |

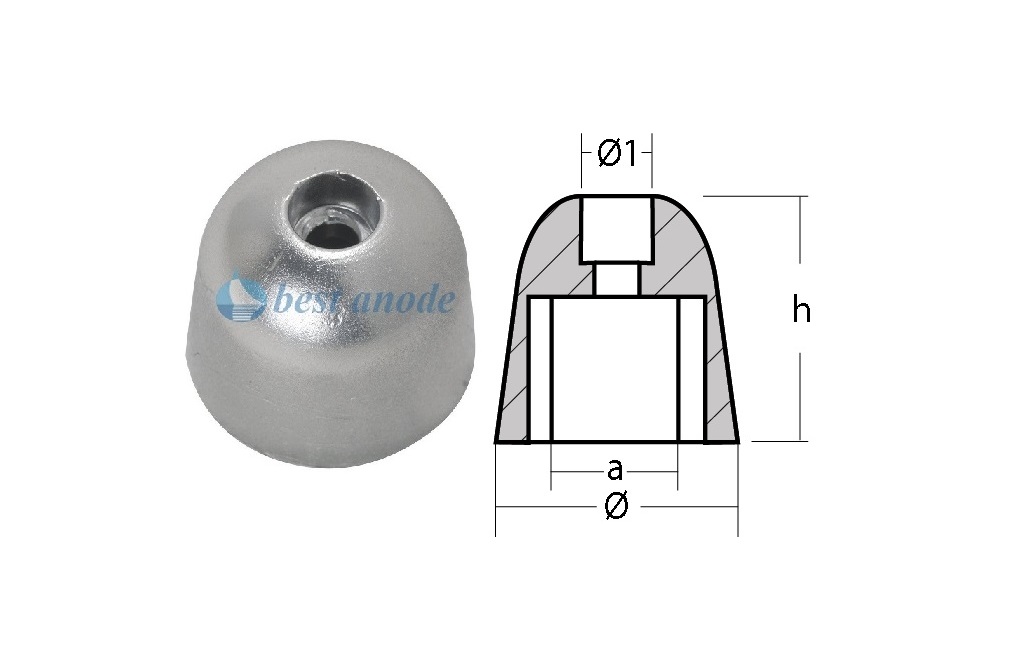

SP 185/250 Series
| Mat. | Code... | Desciription | Ø | Ø 1 | h | a | kg | lb |
|---|---|---|---|---|---|---|---|---|
| Zn | SP 185 | For Side Power 125/155/240/285 | 48mm- 1 7/8” | 11mm- 7/16” | 42mm- 1 5/8” | 24mm- 15/16” | 0,34 | 0,75 |
| Al | SP 185A | For Side Power 125/155/240/285 | 48mm- 1 7/8” | 11mm- 7/16” | 42mm- 1 5/8” | 24mm- 15/16” | 0,13 | 0,28 |
| Zn | SP 250 | For Side Power 420/550 | 67mm- 2 5/8” | 15mm- 9/16” | 48mm- 1 7/8” | 30mm- 1 3/16” | 0,72 | 1,58 |
| Al | SP 250A | For Side Power 420/550 | 67mm- 2 5/8” | 15mm- 9/16” | 48mm- 1 7/8” | 30mm- 1 3/16” | 0,27 | 0,6 |

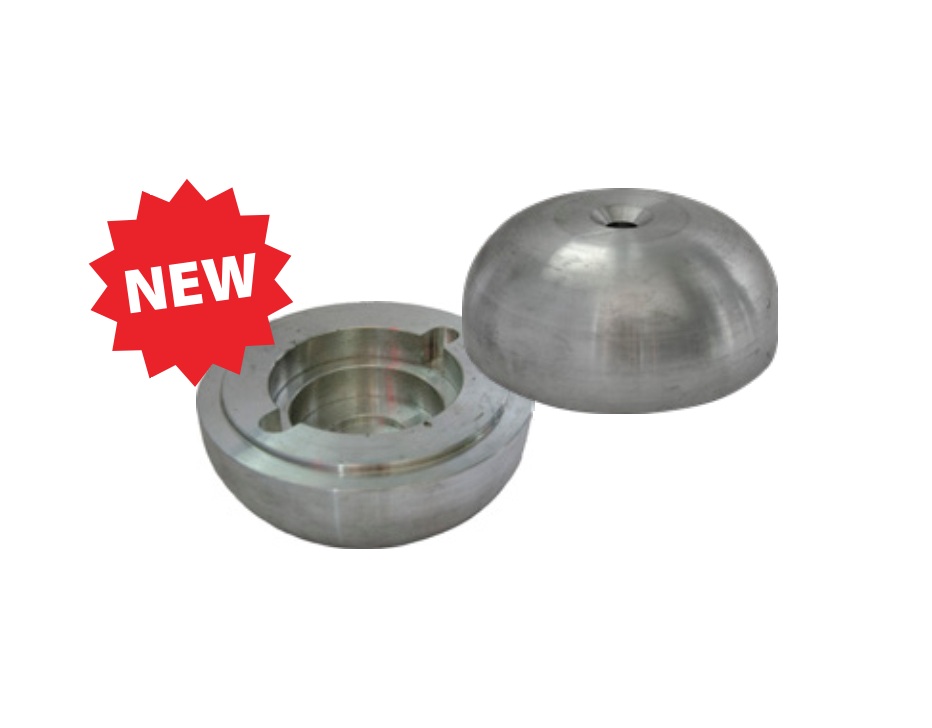

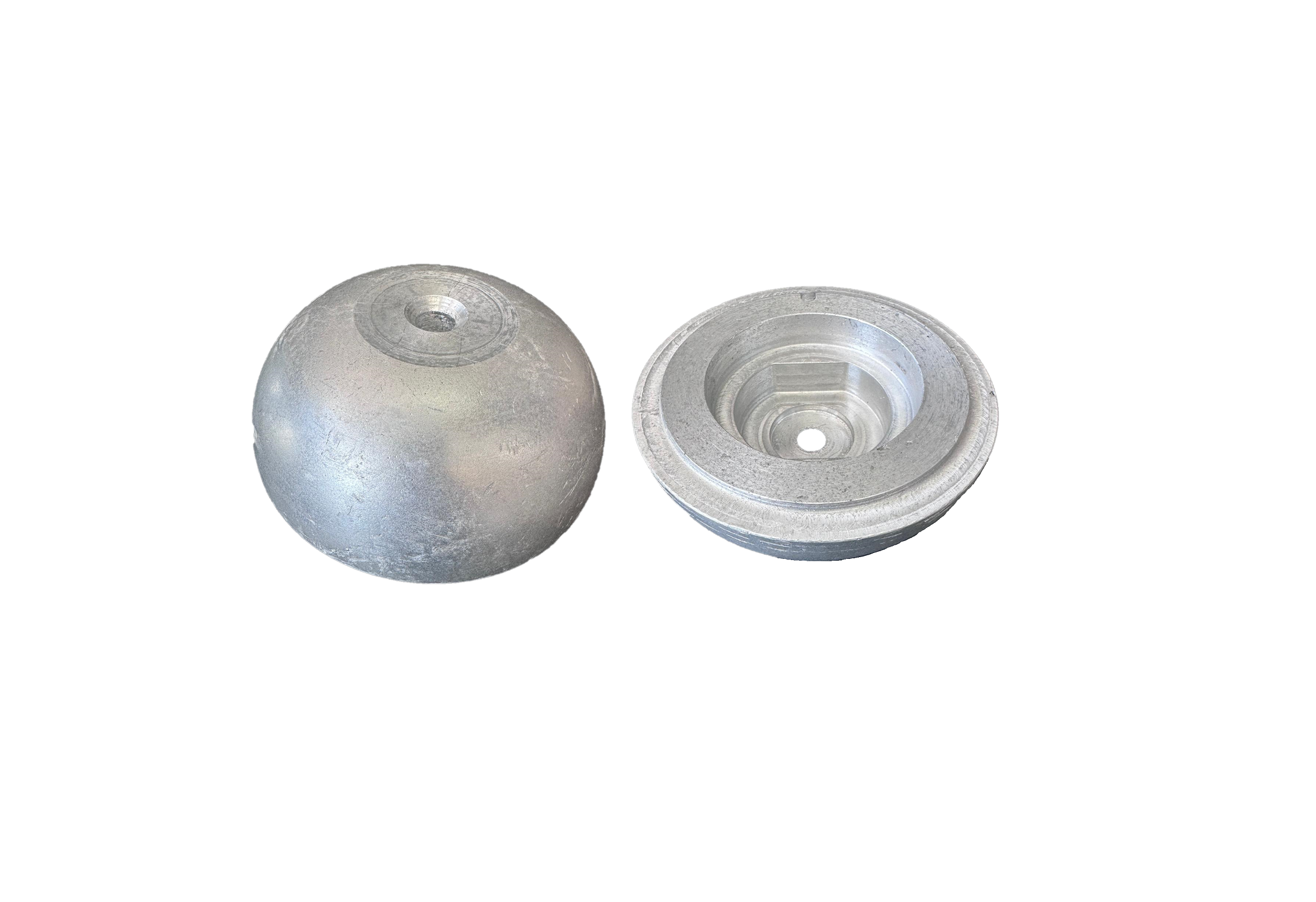

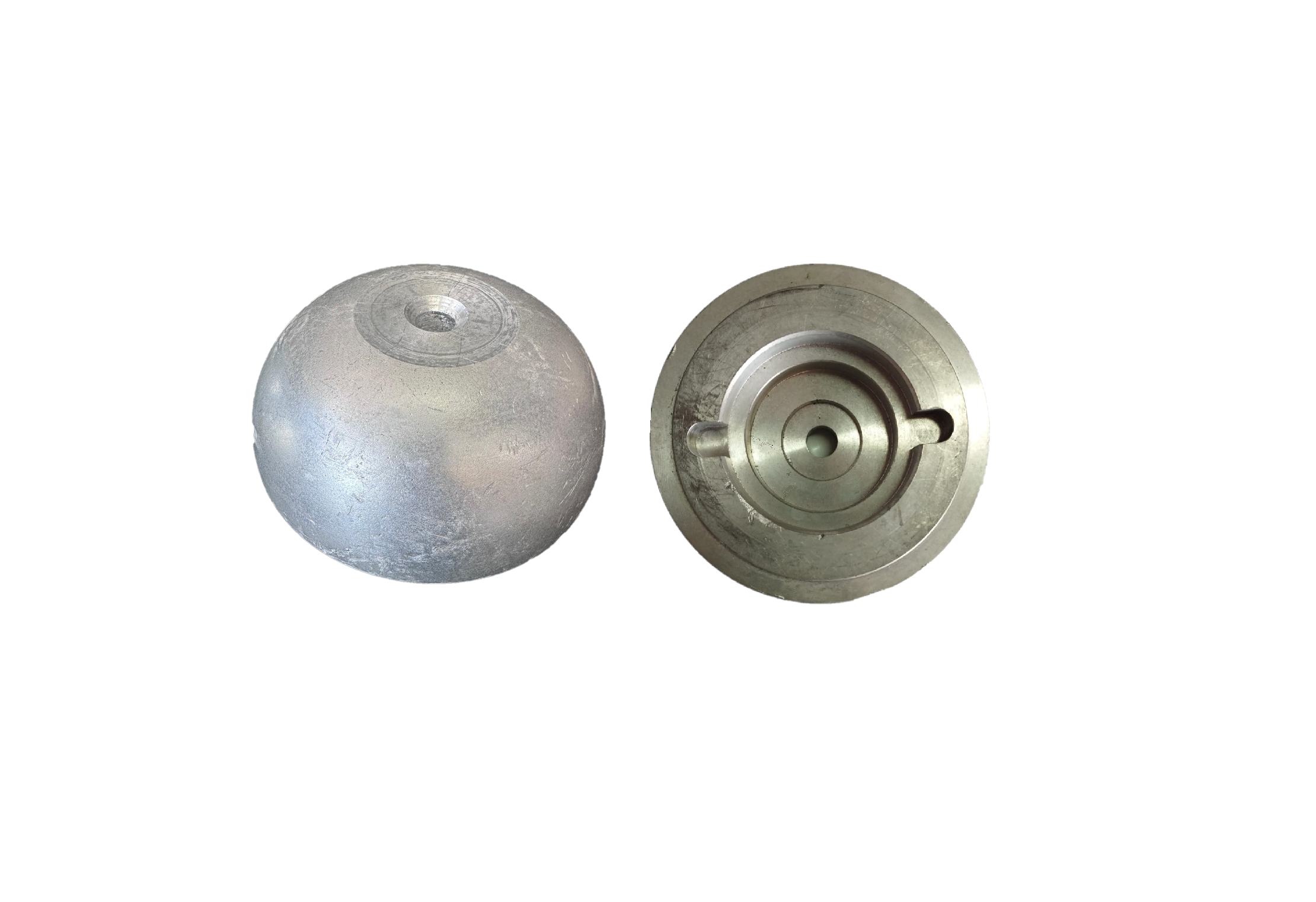

SP 550 Series
| Mat. | Code | Description | Ø | h | kg | lb |
|---|---|---|---|---|---|---|
| Zn | SP 550 | FOR SIDE POWER SH 1000/1400 OEM PART NO: 701180A | 131”mm- 5 1/4 | 52,5mm- 2 1/16” | 3,12 | 6,86 |
| Al | SP 550 | FOR SIDE POWER SH 1000/1400 OEM PART NO: 701180A | 131”mm- 5 1/4 | 52,5mm- 2 1/16” | 1,3 | 2,86 |
